International Polarized Radiative Transfer

This test case has been adopted from phase 1 of the I3RC project (see http://i3rc.gsfc.nasa.gov/input/step_cloud/README.txt)

Setup:

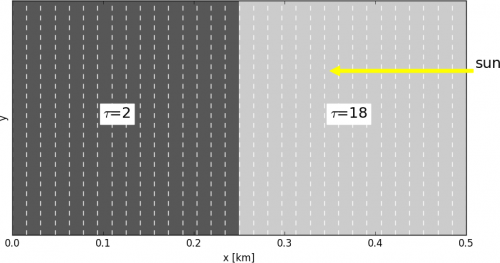

• simple 1D step cloud
  • 32 pixels along the x-direction, first 16 have optical depth of 2, remaining have optical thickness of 18.
  • size of field is set to 0.5 km, i.e. all pixels have a width of 0.5/32 km
  • geometrical thickness of cloud along z-axis: 0.25 km
  • homogeneous extinction coefficient
  • infinite extent in y-direction

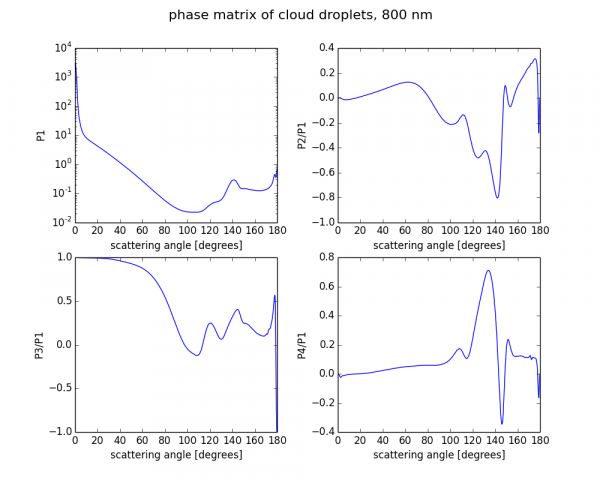

• cloud optical properties as in case A5 (Mie phase matrix for 800 nm wavelength and 10 $\mu$m effective radius): netCDF,ascii
  The variable “phase” includes the phase matrix, as a function of the scattering angle (variable “theta”). The 4×4 scattering phase matrix for spherical droplets has four non-zero elements, which are stored in the following order: $ P = \begin{pmatrix} P1 & P2 & 0 & 0 \\ P2 & P1 & 0 & 0 \\ 0 & 0 & P3 & P4 \\ 0 & 0 & -P4 & P3 \end{pmatrix} $
  The corresponding Legendre polynomials (“pmom”) and the single scattering albedo (“ssa”) are also included in the file.

• single scattering albedo (ssa): 0.99
• periodic boundary conditions are assumed
• Black surface (albedo=0)
• Solar azimuth angle $\phi_0$: 180$^\circ$ (sun from right)
• Viewing geometries (solar zenith angle $\theta_0$, output altitude $z$, viewing zenith angle $\theta$ and viewing azimuth angle $\phi$):
• number of photons: 1e7 per pixels → 32e7

Output format:

The output should be provided in an ascii file containing the following columns:

ssa  theta_0  z  theta  phi  i_x  I  Q  U  V  Istd  Qstd  Ustd  Vstd

i_x denotes the pixel number in x-direction (starting with 1).

I,Q,U,V denote the Stokes vector.

Istd Qstd Ustd Vstd are standard deviations of the Stokes vector components which should be provided for Monte Carlo models. If error estimates can not be provided, these columns may be omitted.

The result filename should be 'iprt_case_c1_MODEL.dat' and it should include the following header:

# IPRT case C1 - Step cloud
# RT model: MODEL_NAME
# ssa theta_0 z theta phi i_x I Q U V Istd Qstd Ustd Vstd

Results of MYSTIC model (10$^8$ photons per pixel).

Results of all models (MYSTIC, SHDOM, SPARTA, 3DMCPOL, MSCART).

Stokes vector components I (left) and Q (right) for the step cloud scenario C1. Here the observer is placed at the top of the cloud layer at position x and it looks downwards and its viewing direction is given by ($\theta$,$\phi$). The solar zenith angle is 0$^\circ$ for cases 5–7 and 60$^\circ$ for cases 8–9. The solar azimuth angle is 0$^\circ$ for all cases. The small panels show the absolute differences between various models (see legend) and accurate MYSTIC simulations obtained with 10$^8$ photons/pixel (MYSTIC 32$\cdot$10$^8$). The grey range corresponds to 2$\sigma$ of MYSTIC simulations without variance reduction methods and with 10$^7$ photons (MYSTIC-NV). The Stokes vector components are normalized to 1000/E$_0$. All cases are in the solar principal plane where the Stokes components $U$ and $V$ are exactly 0 and, therefore, not shown. The grey dashed lines show 1D independent pixel calculations.

Stokes vector components I (left) and Q (right) for the step cloud scenario C1. Here the observer is placed at the top of the cloud layer at position x and it looks downwards and its viewing direction is given by ($\theta$,$\phi$). The solar zenith angle is 0$^\circ$ for cases 5–7 and 60$^\circ$ for cases 8–9. The solar azimuth angle is 0$^\circ$ for all cases. The small panels show the absolute differences between various models (see legend) and accurate MYSTIC simulations obtained with 10$^8$ photons/pixel (MYSTIC 32$\cdot$10$^8$). The grey range corresponds to 2$\sigma$ of MYSTIC simulations without variance reduction methods and with 10$^7$ photons (MYSTIC-NV). The Stokes vector components are normalized to 1000/E$_0$. All cases are in the solar principal plane where the Stokes components $U$ and $V$ are exactly 0 and, therefore, not shown. The grey dashed lines show 1D independent pixel calculations.

Stokes vector components I, Q, U, and V for the step cloud scenario C1. Here, the observer is placed at the top of the cloud layer at position x and it looks downwards and its viewing direction is given by ($\theta$=120$^\circ$,$\phi$=135$^\circ$). The solar zenith angle is $\theta_0$=20$^\circ$ and the solar azimuth angle is $\phi_0$=0$^\circ$. This sun-observer geometry is outside the solar principal plane and, hence, non-zero values for $U$ and $V$ are expected. The small panels show the absolute differences between various models (see legend) and accurate MYSTIC simulations obtained with 10$^8$ photons/pixel (MYSTIC 32$\cdot$10$^8$). The grey range corresponds to 2$\sigma$ of MYSTIC simulations without variance reduction methods and with 10$^7$ photons (MYSTIC-NV). The Stokes vector components are normalized to 1000/E$_0$. The grey dashed lines show 1D independent pixel calculations.

Statistics of Stokes vector components I and Q for the step cloud scenario C1. The left panels show the mean radiance (for Q the mean of the absolute values) for all models and all 10 cases. The middle panels show the standard deviations and the right panels show the root mean square differences $\Delta_{\rm RMS}$ in per cent. U and V are not shown here because they are 0 except for case 10.

Notes:

• Generally a very good agreement between all models. A quantitative comparison is difficult because we have only 32 pixels for each case (not sufficient to state, whether models agree withing standard deviation).
• Most problematic seems to be case 5 ($\theta_0$=0$^\circ$, z=0.25, $\theta$=180$^\circ$, $\phi$=0$^\circ$), here the models SHDOM, 3DMCPOL, and SPARTA show a bias for I, SPARTA and SHDOM also for Q. For SPARTA this becomes obvious when we look at the accurate model run with 1e11 photons (see line plots of results and match fraction).
• We have decided that all Monte Carlo models should use the same number of photons (32e7). The model runs without variance reduction (mystic_nv, 3DMCPOL, SPARTA) show exactly the same mean standard deviations.
• Variance reduction works well for all cases in MSCART, standard deviation is reduced by approximately one order of magnitude.
• MYSTIC variance reduction does not work well for cases 1–4 (up-looking), for cases 5–10 the standard deviation is similar to MSCART
• SHDOM: explicit model, hence no statistical noise. Shows small systematic deviations from MC models, most obvious in Q for cases 2 and 8
• For case 10, V agrees for models with variance reduction or high number of photons (SPARTA 1e11). Results are also very similar to SHDOM.
• RMS only meaningful when mean radiance is non-zero, for U and V therefore only for case 10. For case 5, Q is very small therefore RMS large for all models.
