This case includes the same setup as case D1 but including spherical aerosol particles instead of molecules, the same as in case A3.

Setup:

• no molecules
• typical water soluble aerosol for 50% relative humidity at 500 nm from OPAC database
• aerosol optical thickness: 0.2
• aerosol optical properties: netCDF, ascii

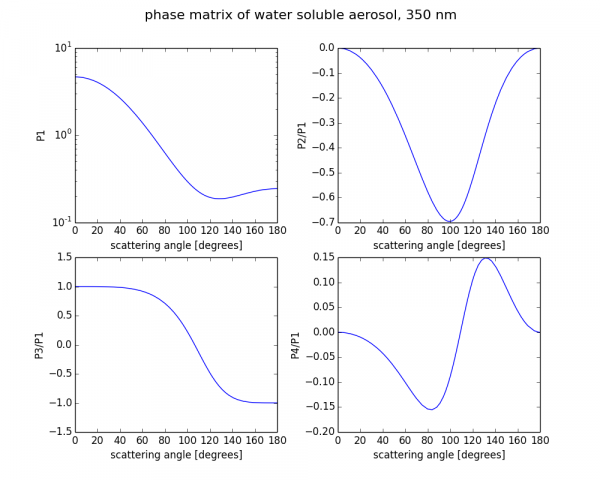

  The variable “phase” includes the phase matrix, as a function of the scattering angle (variable “theta”). The 4×4 scattering phase matrix for spherical droplets has four non-zero elements, which are stored in the following order:

$ P = \begin{pmatrix} P1 & P2 & 0 & 0 \\ P2 & P1 & 0 & 0 \\ 0 & 0 & P3 & P4 \\ 0 & 0 & -P4 & P3 \end{pmatrix} $
The corresponding Legendre polynomials (“pmom”) and the single scattering albedo (“ssa”) are also included in the file. The expansion moments over generalized spherical functions for the phase matrix have been provided by S. Korkin and are available here.

• Earth radius: 6371 km
• Thickness of layer: 120 km

• Sun-observer geometries as defined in general settings:
  • viewing zenith angles (deg): [0, 9, 18, 26, 34, 41, 48, 54, 60, 65, 70, 74, 78, 81, 84, 86, 88, 89, 90] (up-looking at bottom of atmosphere, down-looking at top of atmosphere]
  • viewing azimuth angles (deg): 0-180, 10° increment
  • solar zenith angles (deg): [30, 60, 80, 87, 90, 93, 96, 99]
  • solar azimuth angle (deg): 0
  • sensor altitude (km): 0, 120
